50 11x8in GB National Flag Film

£36.50

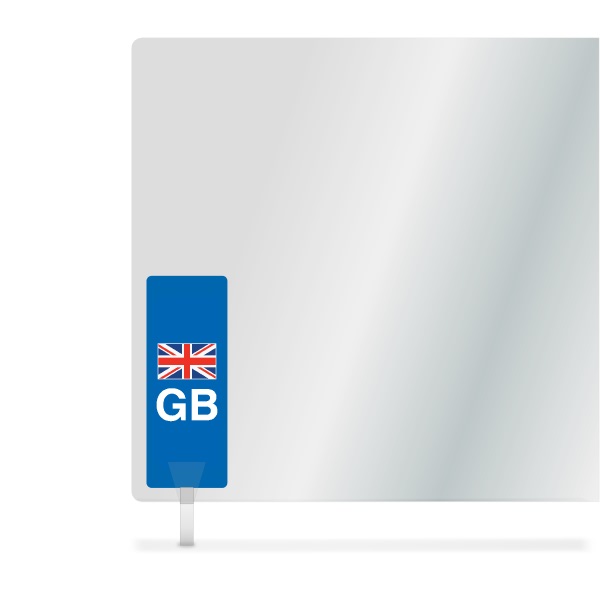

This 50 pack of 11×8 National Flag Film for 4×4 plates comes with a Blue Union Flag & GB Text.

SKU: lg102fb Category:
View basket

Description

Our 11×8 National Flag Film sheets are UV stable for colour fastness and highly durable. In addition, it comes with a blue side badge showing the Union Flag and GB Text. But don’t forget, you need to set up your plates software to accommodate the pre-printed badge.

  • Size: 11x8in / 280x203mm – 4×4 Plates
  • Style: Blue GB National Flag
  • Position: Half Height at Bottom Left
  • Pack: 50 Clear Film Sheets
  • Printable: Yes
  • Film Plates: Laminate to 4×4 ABS Plates.
  • 3-Part: Match with 4×4 Clear Acrylic & 4×4 Wet Reflective.

This item comes in a packs of 50 film sheets, pre-printed with a blue side badge. Because it’s pre-printed, you will not need to use a white badge panel. And our National Flag designs are road legal on UK. So a UK Oval Sticker must be displayed if driving overseas.

British Standards Compliant

A Standard White Number Plate

Our Clear Film sheets make Film and 3-Part Number Plates. Both methods are covered by our British Standard certification, but only when you follow our specification. Which means laminating it to a 3mm ABS plate, or between acrylic & wet reflective for 3-Part.

For more information on standards, regulations and our testing regime, check out our main site and the number plates pages or knowledge base.

Combining Components

Jig combining reflective and acrylic

Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.

Assemble with a Jig & Roller

Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.

Film Plates
  • Use the pins and place your rigid ABS Plate, face up on to the jig.
  • Fold back a few centimetres of the adhesive cover at the end of the plate.
  • Next, line up your Clear Film sheet on top, with the printed side facing downwards.
  • Carefully join the components together at the Exposed Adhesive edge.
  • Ensure both the edge and sides are correctly lined up before joining together.
  • Now slide the two parts towards the Rollers at the end of the jig.
  • Slowly Wind the arm so the components are fed through, keeping hold of the folded adhesive cover.
  • This will remove the adhesive cover and Bond the two parts together.
3-Part Plates
  • Place your Clear Film sheet, printed face up on the roller jig.
  • Fold back a few centimetres of the adhesive cover at the end of an Acrylic Face.
  • Position the Acrylic above the Film, Adhesive Side Down and carefully join the two pieces together
  • Leading with the joined edge, keep hold of the Fold and slowly wind the arm & Feed the parts through the roller.
  • This will remove the adhesive cover and bond the two parts together.
  • Next, put a Wet Reflective adhesive face up on the jig, folding back part of its cover.
  • Position the parts joined earlier on top with the Film Facing Down, join them together at the exposed edge
  • Once again Feed them through the rollers, keeping hold of the folded adhesive cover.
  • Finally, remove the final protective cover from the Acrylic Face.

Additional information

Dimensions 280 × 203 × 0.3 mm
Media Type

Clear Film, Blue Badge
