50 21x6in GB National Flag Film

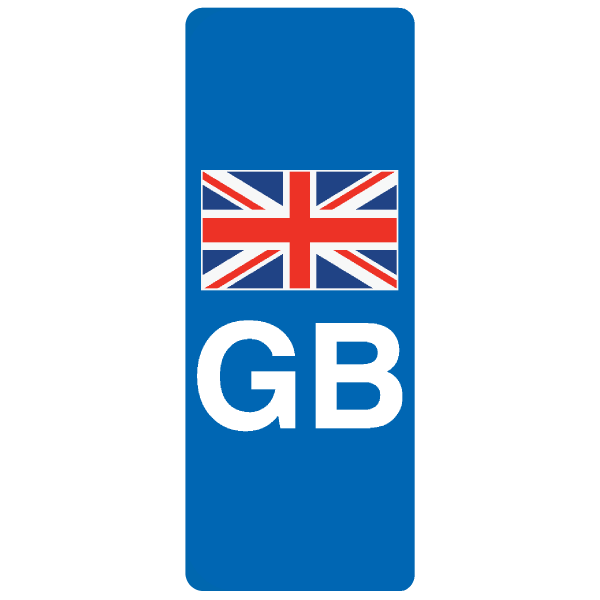

Our 21×6 National Flag Film comes in packs of 50 sheets with a Blue Union Flag & GB Text.
- Additional information
Our 21×6 National Flag Film sheets are UV stable for colour fastness and highly durable. In addition, it comes with a blue side badge showing the Union Flag and GB Text. But don’t forget, you need to set up your plates software to accommodate the pre-printed badge.
- Size: 21x6in / 533x152mm – Oversized
- Style: Blue GB National Flag
- Position: Full Height Panel on Left Side
- Pack: 50 Clear Film Sheets
- Printable: Yes

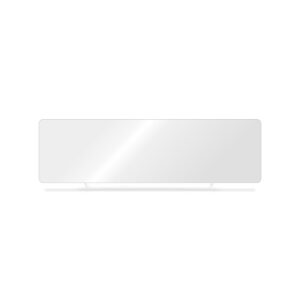

- Film Plates: Laminate to 533x152mm ABS Plates.

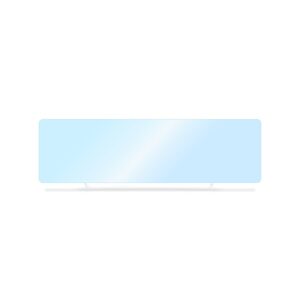

- 3-Part: Match with 533x152mm Clear Acrylic & Wet Reflective.
This item comes in a packs of 50 film sheets, pre-printed with a blue side badge. Because it’s pre-printed, you will not need to use a white badge panel. And our National Flag designs are road legal on UK. So a UK Oval Sticker must be displayed if driving overseas.
British Standards Compliant
Our Clear Film sheets make Film and 3-Part Number Plates. Both methods are covered by our British Standard certification, but only when you follow our specification. Which means laminating it to a 3mm ABS plate, or between acrylic & wet reflective for 3-Part.
Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.
Assemble with a Jig & Roller
Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.
- Use the pins and place your rigid ABS Plate, face up on to the jig.
- Fold back a few centimetres of the adhesive cover at the end of the plate.
- Next, line up your Clear Film sheet on top, with the printed side facing downwards.
- Carefully join the components together at the Exposed Adhesive edge.
- Ensure both the edge and sides are correctly lined up before joining together.
- Now slide the two parts towards the Rollers at the end of the jig.
- Slowly Wind the arm so the components are fed through, keeping hold of the folded adhesive cover.
- This will remove the adhesive cover and Bond the two parts together.
- Place your Clear Film sheet, printed face up on the roller jig.
- Fold back a few centimetres of the adhesive cover at the end of an Acrylic Face.
- Position the Acrylic above the Film, Adhesive Side Down and carefully join the two pieces together
- Leading with the joined edge, keep hold of the Fold and slowly wind the arm & Feed the parts through the roller.
- This will remove the adhesive cover and bond the two parts together.
- Next, put a Wet Reflective adhesive face up on the jig, folding back part of its cover.
- Position the parts joined earlier on top with the Film Facing Down, join them together at the exposed edge
- Once again Feed them through the rollers, keeping hold of the folded adhesive cover.
- Finally, remove the final protective cover from the Acrylic Face.
|Dimensions||533 × 152 × 0.3 mm|
Clear Film, Blue Badge
