10 330x165mm Dry Reflective
£16.00
This 330x165mm Dry Reflective is used to make Reflective Number Plates & comes in packs of 10 sheets.

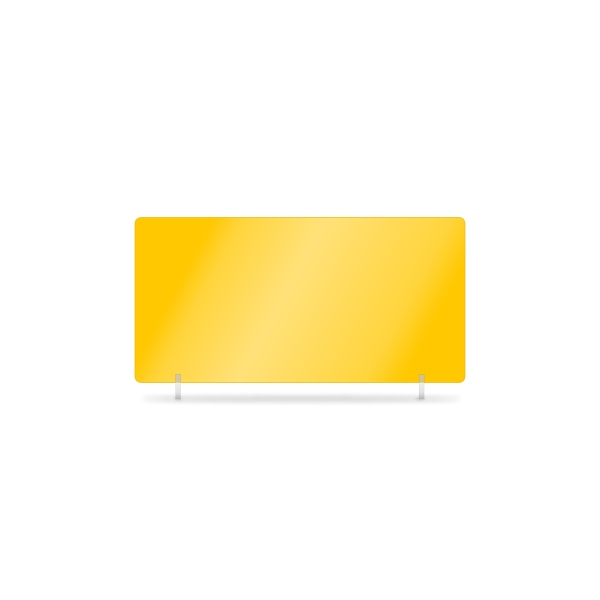

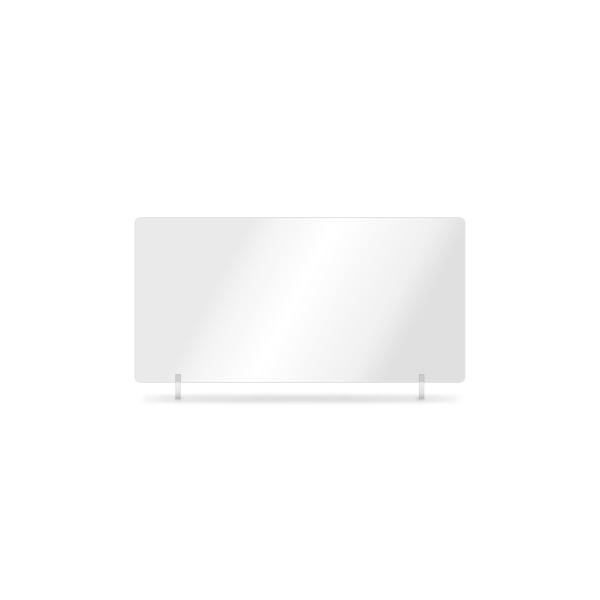

Colour: Select White or Yellow Reflective below.
- Description
- Additional information
Description
- Size: 330x165mm or 13×6½ inch
- Quantity: 10 Dry Reflective Sheets
- Colours: White & Yellow
- Printable: Yes
- Fits: Japanese & Asian Import Plates.
- Reflective Plates: Laminate to 330x165mm Clear Acrylic.
Each one of our 30x165mm Dry Reflective sheets is UV stable and resistant to fading. No matter which colour you use, it provides superior bonding when printed. And it adds the much needed reflectivity to your finished number plates. This size is commonly used on cars imported from Japan and East Asia. Reflective number plates are covered by our BSAU145e certification, shown on our website.
Reflective Number Plates
Make a reflective number plate by laminating your Printed Dry Reflective underneath an Acrylic Face.
For more information on standards and regulations, check out our main site and the number plates pages or knowledge base.
Combining Matched Components
Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.
Assembly with a Jig & Roller
Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.
Reflective Plates
- Use the pins and place your Reflective on the jig, positioned flat and square.
- Fold back a few centimetres of the adhesive cover on an Acrylic face.
- Line up the Acrylic on top, Adhesive facing down towards the reflective.
- Carefully join the components together at the Exposed adhesive, ensure the edges match.
- Slide both parts towards the rollers, Joined edge nearest.
- Take and keep Hold of the folded adhesive cover.
- Slowly Wind the arm so the components are fed through the roller.
- The adhesive cover should be Removed while the roller bonds the parts together.
- Finally, remove the other protective Cover from the Acrylic.
Additional information
| Dimensions | 330 × 165 × 0.4 mm |
|---|---|
| Media Type | Dry Reflective, Reflective Plates |
| Imports | 330x165mm |
| Product Brand | Tennants UK |
