20 Plate 290x213mm 3-Part Bundle

290x213mm 3-Part Bundle

20 Plate 290x213mm 3-Part Bundle

£106.40

In stock

£106.40

This 290x213mm 3-Part Bundle has enough matched components for 20 Yellow BSAU145e Number Plates.
3Part Printing - Icon

SKU: 20lgh097y Category:

Description

Our 290x213mm 3-Part Bundle includes 20 Clear Acrylic Faces & Film Sheets with Wet Reflective. This set of matched components is covered by our BSAU145e certification. So we guarantee your number plates made from it will be road legal, subject to correct use. And this size is ideal for BSAU 145e compliant borders.

As you know, you have to print and join our components together to make a number plate. Therefore ensure your system prints onto clear film before buying this matched bundle.

Note* Reduction applies to standard trade accounts only. Customers with discount rates get their pre-agreed discount.

Bundle Components

20 x 290x213mm Clear Acrylic

naw097 - 290x213mm Clear Acrylic
Our Clear Acrylic Faces from Toennjes, are certified for our number plates. But only when laminated to specific plate media. Not only is it UV stable to resist discolouring, but it also comes with a easy peel covers.

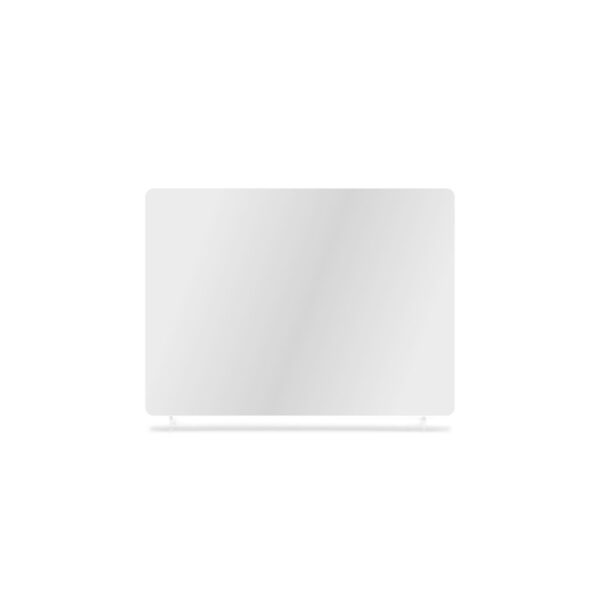

20 x 290x213mm Clear Film

lg197f - 290x213mm Clear Film
Tennants Clear Film is designed for printed number plate production. For 3-Part Plates, you simply sandwich it between an acrylic face and wet reflective. Each film sheet is coated with a substrate for better toner bonding.

20 x 290x213mm Wet Reflective – Yellow

nrw097y - Yellow 290x213mm Wet Reflective
Oralite Number Plate Reflective is made for number plate production. For 3-Part Plates, you simply laminate it to the back of a printed film sheet. As well as being fade resistant, each sheet comes with an adhesive coating for easy assembly.

3-Part Number Plates

3-Part Plates

You make a 3-Part Number Plates by printing onto a clear film sheet, then laminating it between an acrylic face and wet reflective.

For more information on standards and regulations, check out our main site and the number plates pages or knowledge base.

Combining Components

Roller jigs are used for plate assembly

Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.

Assemble with a Jig & Roller

Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.

3-Part Plates
  • Place your printed Clear Film face up on the jig.
  • Fold back a few centimetres of the adhesive cover on a Acrylic Face.
  • Position the Acrylic above the Film, Adhesive Side Down and carefully join the two pieces together
  • Leading with the joined edge, keep hold of the Fold and slowly wind the arm & Feed the parts through the roller.
  • This will remove the adhesive cover and bond the two parts together.
  • Next, put a Wet Reflective adhesive face up on the jig, folding back part of its cover.
  • Position the parts joined earlier on top with the Film Facing Down, join them together at the exposed edge
  • Once again Feed them through the rollers, keeping hold of the folded adhesive cover.
  • This will remove the final adhesive cover and Bond all the parts together.

Additional information

Dimensions290 × 213 mm
Media Type

3-Part Plates, Matched Bundles

Large

290x213mm

Product Brand

Tennants UK
