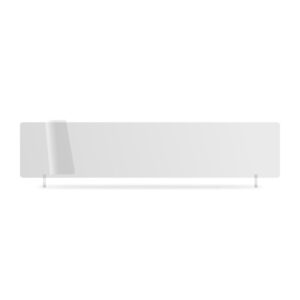

25 Oblong Wet Reflective
This Oblong Wet Reflective is used to make 3-Part Number Plates & comes in packs of 25 sheets.
Colour: Select White or Yellow Reflective below.
- Additional information
- Size: 520x111mm – Oblong
- Quantity: 25 Wet Reflective Sheets
- Colour: White & Yellow
- Wet Faced: Adhesive Coated
- Printable: No
- 3-Part Plates: Match with Oblong Clear Acrylic and Oblong Clear Film.
Our Oblong Wet Reflective sheets are UV stable and resistant to fading. Wet-faced, their adhesive coating is protected by a quick release cover. And each sheet adds colour and reflectivity to the back of your plates. To make a 3-Part Number Plate, simply laminate one underneath your printed film & clear acrylic.
3-Part Number Plates
3-Part number plates are made by printing onto a clear film sheet, then laminating it between an acrylic face and wet reflective.
For more information on standards and regulations, check out our main site and the number plates pages or knowledge base.
Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.
Assemble with a Jig & Roller
Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.
- Place your printed Clear Film face up on the jig.
- Fold back a few centimetres of the adhesive cover on a Acrylic Face.
- Position the Acrylic above the Film, Adhesive Side Down and carefully join the two pieces together
- Leading with the joined edge, keep hold of the Fold and slowly wind the arm & Feed the parts through the roller.
- This will remove the adhesive cover and bond the two parts together.
- Next, put a Wet Reflective adhesive face up on the jig, folding back part of its cover.
- Position the parts joined earlier on top with the Film Facing Down, join them together at the exposed edge
- Once again Feed them through the rollers, keeping hold of the folded adhesive cover.
- This will remove the final adhesive cover and Bond all the parts together.
|Dimensions||520 × 111 × 0.4 mm|
