10 533x127mm Dry Reflective

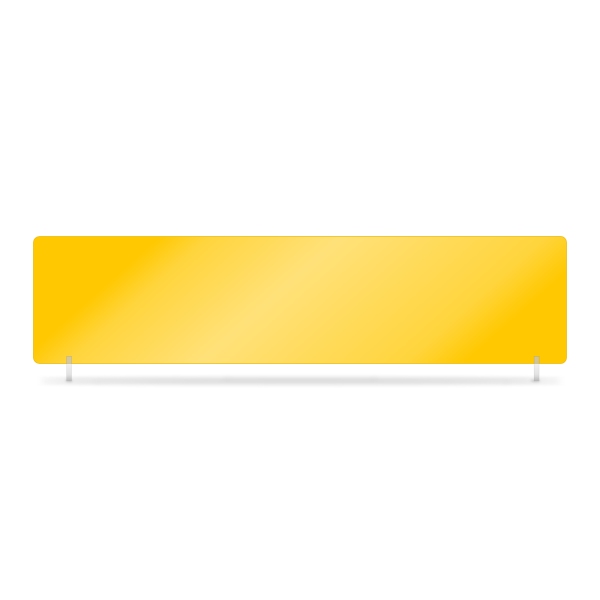

nrd077y - Yellow 535x127mm Dry Reflective

10 533x127mm Dry Reflective

£20.00

In stock

£20.00

This 533x127mm Dry Reflective is used to make Reflective Number Plates & comes in packs of 10 sheets.

Colour: Select White or Yellow Reflective below.
Reflective Printing - Icon

SKU: N/A Category:
Clear

Description

  • Size: 533x127mm or 21×5 inch
  • Quantity: 10 Dry Reflective Sheets
  • Colour: White & Yellow
  • Printable: Yes
  • Reflective Plates: Laminate to 533x127mm Clear Acrylic.

Each one of our 533x127mm Dry Reflective sheets is UV stable and resistant to fading. No matter which colour you use, it provides superior bonding when printed. And it adds the much needed reflectivity to your number plates. Moreover this is another size you can use for oversized number plates. Reflective number plates are covered by our BSAU145e certification, as shown on our website.

Reflective Number Plates

Reflective & Acrylic Construction

Make a reflective number plate by laminating your Printed Dry Reflective underneath an Acrylic Face.

For more information on standards and regulations, check out our main site and the number plates pages or knowledge base.

Combining Matched Components

Jig combining reflective and acrylic

Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.

Assembly with a Jig & Roller

Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.

Reflective Plates
  • Use the pins and place your Reflective on the jig, positioned flat and square.
  • Fold back a few centimetres of the adhesive cover on an Acrylic face.
  • Line up the Acrylic on top, Adhesive facing down towards the reflective.
  • Carefully join the components together at the Exposed adhesive, ensure the edges match.
  • Slide both parts towards the rollers, Joined edge nearest.
  • Take and keep Hold of the folded adhesive cover.
  • Slowly Wind the arm so the components are fed through the roller.
  • The adhesive cover should be Removed while the roller bonds the parts together.
  • Finally, remove the other protective Cover from the Acrylic.

Additional information

Dimensions533 × 127 × 0.4 mm
Media Type

Dry Reflective, Reflective Plates

Oversized

533x127mm

Product Brand

Tennants UK
