Premium Roller Jig

NC108 Premium Roller Jig

Premium Roller Jig

£275.00

Out of stock

£275.00

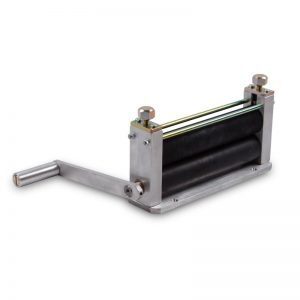

Our Premium Roller Jig is designed to help you you assemble our plate media and make number plates with a professional finish.
Note: Pallet Shipped with extra costs.

Availability: Out of stock SKU: nc108 Category:

Description

  • SKU/Part No: nc108
  • Size: 500 x 300mm
  • Type: Pin Jig with Rubber Rollers
  • Max Width: 220mm with Pins
  • Roller Height: Adjustable
  • Usage: Cold Laminating
  • For: Combining Plate Media
  • Pallet Shipped: Yes

The Premium Roller Jig is the perfect tool to help you assemble our plate media together. Not only do the pins help you to perfectly align and combine components. But the twin rollers are adjustable, so you can perfectly compress and bond it all together.

Larger and heavier than our Economy Jig, both the bed and lining-up pins are made from finished metal. While its height adjustable rollers are a soft, pliable rubber. Which permit you to use a variety of media thicknesses. Which comes in handy when producing vehicle signs and promotional material.

Using the Premium Roller Jig

Using this premium roller jig to assemble a number plate is simple and gets easier the more you do it. But you will need to follow some simple steps to ensure your plates have a professional finish. The sections below show how to assemble our 3 constructions, to make Film, Reflective and 3-Part plates. For more help check out our Knowledge Base articles.

Note: For number plates your rollers need to be set to a 3mm gap.

Film Plates

For a film plate assemble your printed Clear Film sheet on top of a rigid White or Yellow ABS Plate.

Slide the Film & Plate Towards Rollers

  • Place your Clear Film on the jig, with the rear of the side badge facing upwards.
  • Now peel the adhesive cover off a white Badge Panel.
  • Carefully position the panel above the side badge and Stick it into place.
  • Put the film aside and place your rigid ABS Plate, face up on to the jig.
  • Fold back a few centimetres of the adhesive cover at the end of the plate.
  • Next, line up your Clear Film sheet on top, with the printed side facing downwards.
  • Carefully join the components together at the Exposed Adhesive edge.
  • Ensure both the edge and sides are correctly lined up before joining together.
  • Now slide the two parts towards the Rollers at the end of the jig.
  • Slowly Wind the arm so the components are fed through, keeping hold of the folded adhesive cover.
  • This will remove the adhesive cover and Bond the two parts together.
Reflective Plates

To make a reflective plate laminate your printed Dry Reflective sheet on top a Clear Acrylic Face.

Hold the flap and feed the Reflective Components through the rollers

  • Use the pins and place your Reflective on the jig, positioned flat and square.
  • Fold back a few centimetres of the adhesive cover on an Acrylic face.
  • Line up the Acrylic on top, Adhesive facing down towards the reflective.
  • Carefully join the components together at the Exposed adhesive, ensure the edges match.
  • Slide both parts towards the rollers, Joined edge nearest.
  • Take and keep Hold of the folded adhesive cover.
  • Slowly Wind the arm so the components are fed through the roller.
  • The adhesive cover should be Removed while the roller bonds the parts together.
  • Finally, remove the other protective Cover from the Acrylic.
3-Part Plates

You make a 3-Part Plate by laminating a printed Film Sheet between an Acrylic Face & Wet Reflective backing.

Hold the flap as the 3-Part Components are Fed Through the Rollers

  • Place your Clear Film on the jig, with the rear of the side badge facing upwards.
  • Now peel the adhesive cover off a white Badge Panel.
  • Carefully position the panel above the side badge and Stick it into place.
  • Next turn your Film over so its facing upwards on the jig.
  • Fold back a few centimetres of the adhesive cover at the end of an Acrylic Face.
  • Position the Acrylic above the Film, Adhesive Side Down and carefully join the two pieces together
  • Leading with the joined edge, keep hold of the Fold and slowly wind the arm & Feed the parts through the roller.
  • This will remove the adhesive cover and bond the two parts together.
  • Next, put a Wet Reflective adhesive face up on the jig, folding back part of its cover.
  • Position the parts joined earlier on top with the Film Facing Down, join them together at the exposed edge
  • Once again Feed them through the rollers, keeping hold of the folded adhesive cover.
  • Finally, remove the final protective cover from the Acrylic Face.

Premium Roller Jig Maintenance

The jigs bed and vertical lining-up pins are made from a metal, which along with the roller sides can be easily wiped down. The rollers are made from a soft rubber, so take care when cleaning not to scour their surface. Use a lint free cloth and a mild detergent, wipe away any dust or dirt and allow all surfaces to dry completely before further use.

Keep your premium roller jig in a clean environment, so finished plates made with it aren’t contaminated with dirt or grease. If any pins become loose they can simply be tightened up by turning them clockwise.

Additional information

Dimensions500 × 300 × 200 mm
