10 184x108mm Dry Reflective

£12.00

This 184x108mm Dry Reflective is used to make Reflective Number Plates & comes in packs of 10 sheets.
Reflective Printing - Icon

SKU: nrd051y Category:
View basket

Description

  • Size: 7¼ x 4¼ inch or 184 x 108mm
  • Quantity: 10 Dry Reflective Sheets
  • Colour: Yellow
  • Wet Faced: No Adhesive
  • Printable: Yes
  • For: Harley Davidson Motorbikes.
  • Reflective Plates: Laminate to 184x108mm Clear Acrylic.

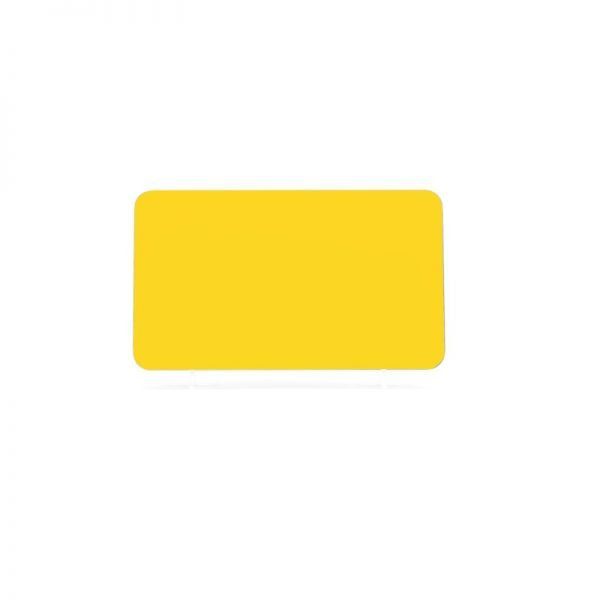

Our Yellow 184x108mm Dry Reflective sheets are UV stable and resistant to fading. Each sheet comes with a finish to improve bonding when printed. And is Dry Faced, which means it’s printable and comes without an adhesive coating. Not to mention being perfect for the mount on Harley Davidson Motorbikes.

Reflective Number Plates

Reflective and Acrylic Plates

You make standards compliant number plates by printing onto a reflective sheet, then laminating it underneath an acrylic face.

For more information on standards and regulations, check out our main site and the number plates pages or knowledge base.

Combining Components

Jig combining reflective and acrylic

Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.

Assembly with a Jig & Roller

Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.

Reflective Plates
  • Use the pins and place your Reflective on the jig, positioned flat and square.
  • Fold back a few centimetres of the adhesive cover on an Acrylic face.
  • Line up the Acrylic on top, Adhesive facing down towards the reflective.
  • Carefully join the components together at the Exposed adhesive, ensure the edges match.
  • Slide both parts towards the rollers, Joined edge nearest.
  • Take and keep Hold of the folded adhesive cover.
  • Slowly Wind the arm so the components are fed through the roller.
  • The adhesive cover should be Removed while the roller bonds the parts together.
  • Finally, remove the other protective Cover from the Acrylic.

Additional information

Dimensions 184 × 108 × 0.4 mm
Media Type

Dry Reflective, Reflective Plates
