10 184x108mm LG EnviroPlate

lg051y - Yellow 184x108mm LG EnviroPlate

10 184x108mm LG EnviroPlate

£29.00

In stock

£29.00

Our 184x108mm LG EnviroPlate are used to make Film Number Plates & come in packs of 10 reflective plates.
Film Printing - Icon

SKU: lg051y Category:

Description

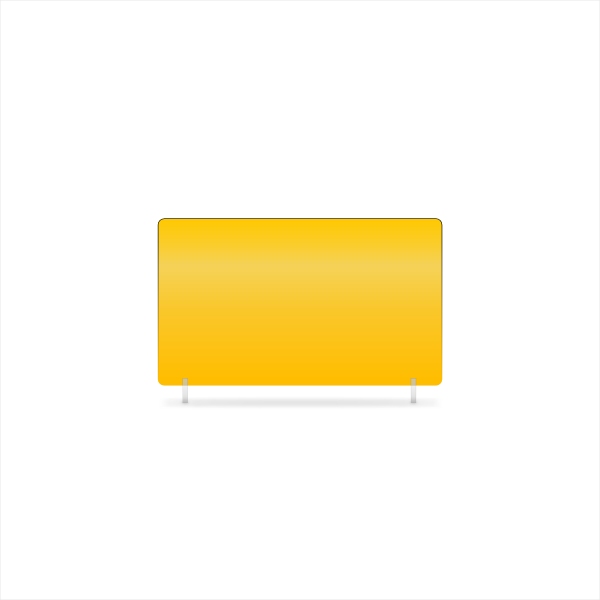

  • Size: 7¼ x 4¼ inch or 184 x 108mm
  • Quantity: 10 EnviroPlate
  • Type: 3mm Thick Reflective Plate
  • Colour: Yellow
  • Wet Faced: Coated with Adhesive
  • Printable: No
  • For: Harley Davidson Motorcycles.
  • Film Plates: Match with 184x108mm Clear Film.

Our Yellow 184x108mm LG EnviroPlate are UV stable and resistant to fading. Wet-faced, their reflective face has adhesive coating protected by a quick release cover. And each one adds reflectivity & durability to your Film Number Plates. Not to mention being perfect for the mount on Harley Davidson Motorbikes. Tennants film number plates are covered by our BSAU145e certification, as shown on our website.

Film Number Plates

Clear Film & LG EnviroPlate - Construction

Make a film number plate by laminating your reverse printed Clear Film above a reflective LG EnviroPlate.

For more information on standards and regulations, check out our main site and the number plates pages or knowledge base.

Combining Matched Components

Roller jigs are used for plate assembly

Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.

Assemble with a Jig & Roller

Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.

Film Plates
  • Start by applying any Badge Panels to your printed film, for colour correction.
  • Next use the pins and place a LG EnviroPlate, reflective face up on to the jig.
  • Fold back a few centimetres of the adhesive cover at the end of the plate.
  • Now, line up your Clear Film sheet on top, with the printed side facing downwards.
  • Carefully join the components together at the Exposed Adhesive edge.
  • Ensure both the edge and sides are correctly lined up before joining together.
  • Finally slide the two parts towards the Rollers at the end of the jig.
  • Slowly Wind the arm so the components are fed through, keeping hold of the folded adhesive cover.
  • This will remove the adhesive cover and Bond the two parts together.

Additional information

Dimensions184 × 108 × 3 mm
Media Type

LG EnviroPlate, Film Plates

Product Brand

Tennants UK
