10 330x178mm LG EnviroPlate

lg030y - Yellow 330x178mm LG EnviroPlate

10 330x178mm LG EnviroPlate

£42.00

In stock

£42.00

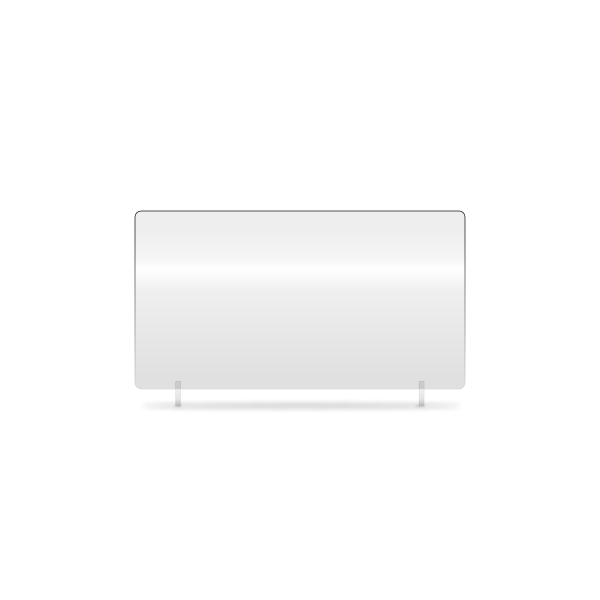

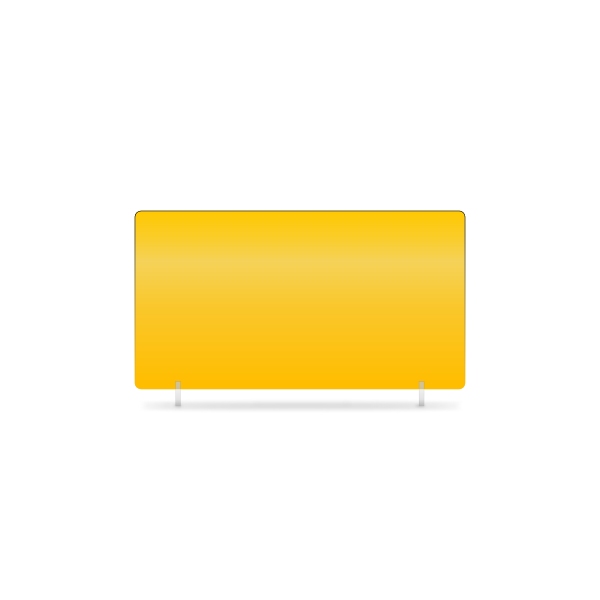

Our 330x178mm LG EnviroPlate are used to make Film Number Plates & comes in packs of 10 reflective plates.

Colour: Select White or Yellow plates below.
Film Printing - Icon

SKU: N/A Category:
Clear

Description

  • Size: 330x178mm or 13×7 inch
  • Quantity: 10 LG EnviroPlate
  • Colours: White & Yellow
  • Wet Faced: Yes – Adhesive Coated
  • Printable: No
  • For: Japanese & Asian Import Plates.
  • Film Plates: Laminate to 330x178mm Clear Film.

Our 330x178mm LG EnviroPlate are UV stable and resistant to fading. Wet-faced, their adhesive coating is protected by a quick release cover. And each one adds reflectivity & durability to your Film Number Plates. To make a number plate, simply laminate one underneath your printed clear film. Tennants film number plates are covered by our BSAU145e certification, as shown on our website.

Film Number Plates

Clear Film & LG EnviroPlate - Construction

Make a film number plate by laminating your reverse printed Clear Film above a reflective LG EnviroPlate.

For more information on standards and regulations, check out our main site and the number plates pages or knowledge base.

Combining Matched Components

Roller jigs are used for plate assembly

Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.

Assemble with a Jig & Roller

Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.

Film Plates
  • Start by applying any Badge Panels to your printed film, for colour correction.
  • Next use the pins and place a LG EnviroPlate, reflective face up on to the jig.
  • Fold back a few centimetres of the adhesive cover at the end of the plate.
  • Now, line up your Clear Film sheet on top, with the printed side facing downwards.
  • Carefully join the components together at the Exposed Adhesive edge.
  • Ensure both the edge and sides are correctly lined up before joining together.
  • Finally slide the two parts towards the Rollers at the end of the jig.
  • Slowly Wind the arm so the components are fed through, keeping hold of the folded adhesive cover.
  • This will remove the adhesive cover and Bond the two parts together.

Additional information

Dimensions330 × 178 × 3 mm
Media Type

LG EnviroPlate, Film Plates

Imports

330x178mm

Product Brand

Tennants UK
