10 520x121mm LG EnviroPlate

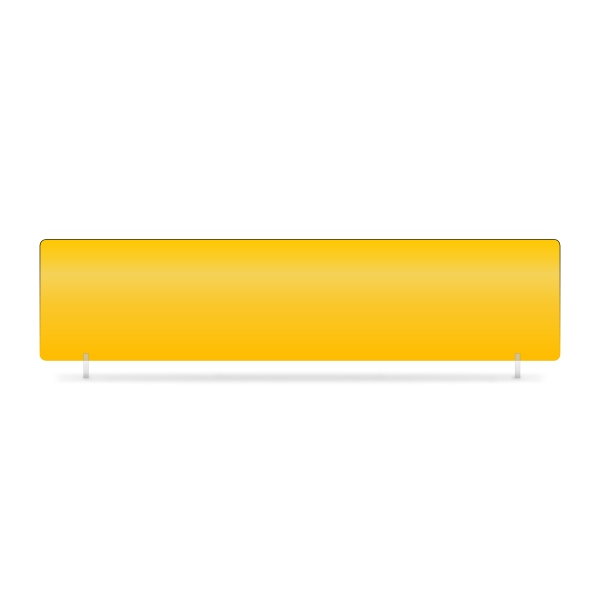

lg035y - Yellow 520x121mm LG EnviroPlate

10 520x121mm LG EnviroPlate

£46.50

In stock

£46.50

Our 520x121mm LG EnviroPlate are used to make Film Number Plates & come in packs of 10 reflective plates.

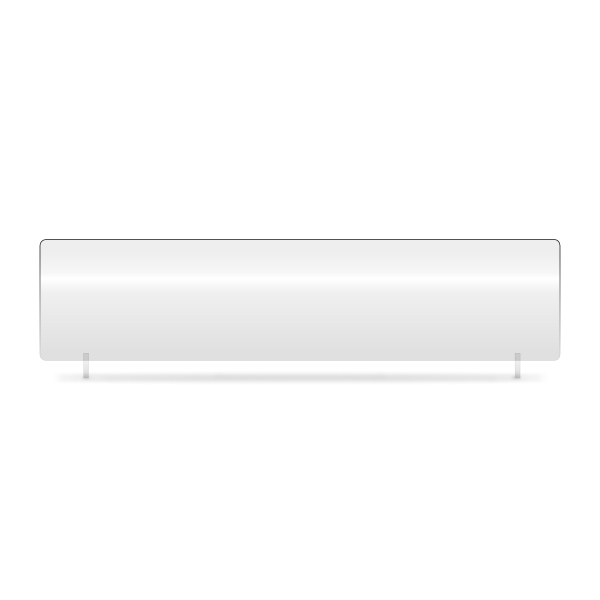

Colour: Select White or Yellow plates below.
Film Printing - Icon

SKU: N/A Category:
Clear

Description

  • Size: 520x121mm or 20½x4¾ inch
  • Quantity: 10 LG EnviroPlate
  • Colour Options: White & Yellow
  • Wet Faced: Yes – Adhesive Coated
  • Printable: No
  • Film Plates: Laminate to 520x121mm Clear Film.

Our 520x121mm LG EnviroPlate are UV stable and resistant to fading. No matter which colour you use, it adds reflectivity to the back of your number plates. Wet-faced, their adhesive coating is protected by a quick release cover. And this is another size you can use for oversized plates. Tennants matched components are covered by our BSAU145e certification, as shown on our website.

Film Number Plates

Clear Film & LG EnviroPlate - Construction

Make a film number plate by laminating your reverse printed Clear Film above a reflective LG EnviroPlate.

For more information on standards and regulations, check out our main site and the number plates pages or knowledge base.

Combining Matched Components

Roller jigs are used for plate assembly

Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.

Assemble with a Jig & Roller

Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.

Film Plates
  • Start by applying any Badge Panels to your printed film, for colour correction.
  • Next use the pins and place a LG EnviroPlate, reflective face up on to the jig.
  • Fold back a few centimetres of the adhesive cover at the end of the plate.
  • Now, line up your Clear Film sheet on top, with the printed side facing downwards.
  • Carefully join the components together at the Exposed Adhesive edge.
  • Ensure both the edge and sides are correctly lined up before joining together.
  • Finally slide the two parts towards the Rollers at the end of the jig.
  • Slowly Wind the arm so the components are fed through, keeping hold of the folded adhesive cover.
  • This will remove the adhesive cover and Bond the two parts together.

Additional information

Dimensions520 × 121 × 3 mm
Media Type

LG EnviroPlate, Film Plates

Oversized

520x121mm

Product Brand

Tennants UK
