10 565x184mm ABS Plates

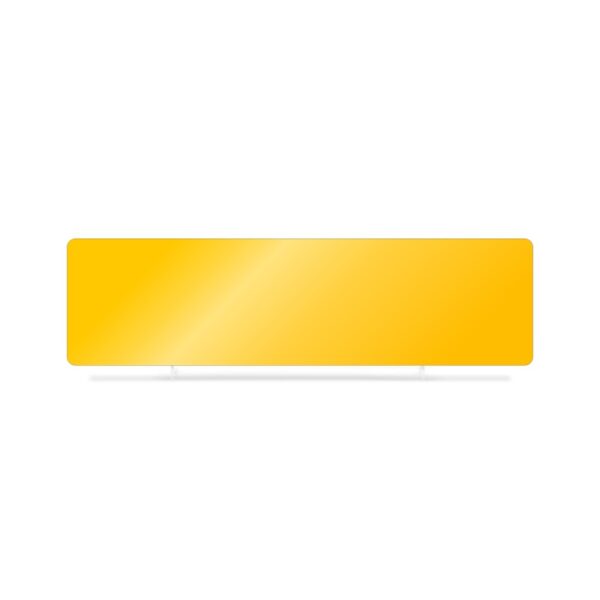

lg042y - Yellow 565x184mm ABS Plates

10 565x184mm ABS Plates

£59.00

In stock

£59.00

Our 565x184mm ABS Plates are used to make Film Number Plates & come in packs of 10 rigid plates.

Colour: Select White or Yellow ABS below.
Film Printing - Icon

SKU: N/A Category:
Clear

Description

  • Size: 565x184mm or 22×7¼ inch
  • Quantity: 10 ABS Plates

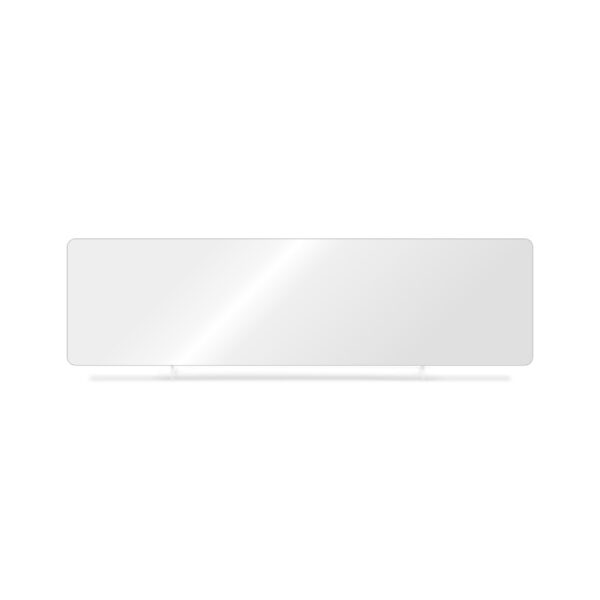

  • Colour Options: White & Yellow
  • Wet Faced: Adhesive Coated
  • Printable: No
  • Film Plates: Laminate to 565x184mm Clear Film.

Our 565x184mm ABS Plates are UV stable and resistant to fading. No matter which colour you use, it adds reflectivity to the back of your number plates. Wet-faced, their adhesive coating is protected by a quick release cover. And this is another size you can use for oversized plates.

Film Number Plates

Film and ABS Plates

You make film number plates by printing onto a clear film sheet and then laminate it above a rigid ABS plate.

For more information on standards and regulations, check out our main site and the number plates pages or knowledge base.

Combining Components

Roller jigs are used for plate assembly

Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.

Assemble with a Jig & Roller

Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.

Film Plates
  • Start by applying any Badge Panels to your printed Clear Film, for colour correction.
  • Use the pins and place your rigid ABS Plate, face up on to the jig.
  • Fold back a few centimetres of the adhesive cover at the end of the plate.
  • Next, line up your Clear Film sheet on top, with the printed side facing downwards.
  • Carefully join the components together at the Exposed Adhesive edge.
  • Ensure both the edge and sides are correctly lined up before joining together.
  • Now slide the two parts towards the Rollers at the end of the jig.
  • Slowly Wind the arm so the components are fed through, keeping hold of the folded adhesive cover.
  • This will remove the adhesive cover and Bond the two parts together.

Additional information

Dimensions565 × 184 × 3 mm
Media Type

ABS Plate, Film Plates

Oversized

565x184mm

Product Brand

Tennants UK
