10 520x152mm Wet Reflective

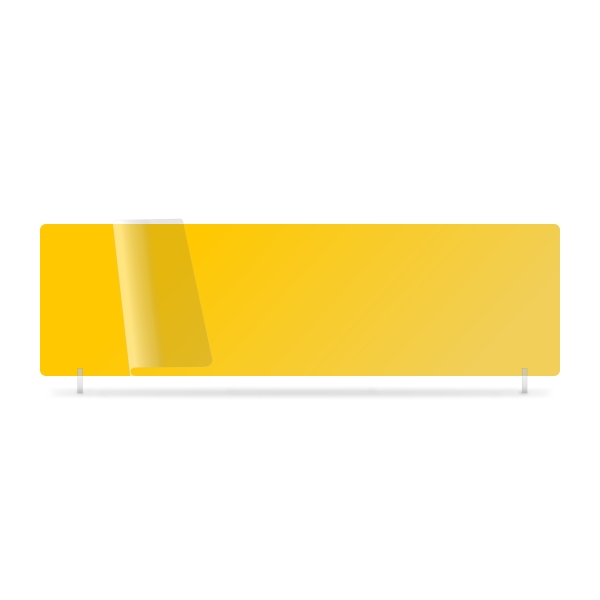

nrw038y - Yellow 520x152mm Wet Reflective

10 520x152mm Wet Reflective

£20.00

In stock

£20.00

This 520x152mm Wet Reflective is used to make 3-Part Number Plates & comes in packs of 10 sheets.

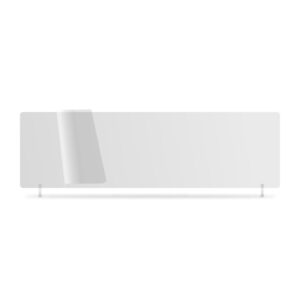

Colour: Select White or Yellow Reflective below.
3Part Printing - Icon

SKU: N/A Category:
Clear

Description

  • Size: 520x152mm or 20½x6 inch
  • Quantity: 10 Wet Reflective Sheets
  • Colour Options: White & Yellow
  • Wet Faced: Yes – Adhesive Coated
  • Printable: No
  • 3-Part Plates: Match with 520x152mm Clear Acrylic and Clear Film.

Our 520x152mm Wet Reflective sheets are UV stable and resistant to fading. No matter which colour you use, it adds reflectivity to the back of your number plate. Wet-faced, their adhesive coating is protected by a quick release cover. And this is another size commonly used for oversized plates on luxury cars. 3-Part number plates are covered by our BSAU145e certification, as shown on our website.

3-Part Number Plates

3-Part Construction

Make 3-Part number plates by printing onto Clear Film, then laminating it between an Acrylic Face and Wet Reflective.

For more information on standards and regulations, check out our main site and the number plates pages or knowledge base.

Combining Matched Components

Roller jigs are used for plate assembly

Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.

Assemble with a Jig & Roller

Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.

3-Part Plates
  • Place your printed Clear Film face up on the jig.
  • Fold back a few centimetres of the adhesive cover on a Acrylic Face.
  • Position the Acrylic above the Film, Adhesive Side Down and carefully join the two pieces together
  • Leading with the joined edge, keep hold of the Fold and slowly wind the arm & Feed the parts through the roller.
  • This will remove the adhesive cover and bond the two parts together.
  • Next, put a Wet Reflective adhesive face up on the jig, folding back part of its cover.
  • Position the parts joined earlier on top with the Film Facing Down, join them together at the exposed edge
  • Once again Feed them through the rollers, keeping hold of the folded adhesive cover.
  • This will remove the final adhesive cover and Bond all the parts together.

Additional information

Dimensions520 × 152 × 0.4 mm
Media Type

Wet Reflective, 3-Part Plates

Oversized

520x152mm

Product Brand

Tennants UK
