9×7 Film Bundles

9x7 Film Bundles

9×7 Film Bundles

£70.80£177.00

In stock

£70.80£177.00

Our 9×7 Film Bundles include Clear Film & LG EnviroPlate for making BSAU145e Number Plates.

Bundle: Choose a 20 or 50 plate Bundle.

SKU: N/A Category:
Clear

Description

Our 9×7 Film Bundles include Clear Film Sheets & Yellow LG EnviroPlate. No matter which bundle size you choose, it’s matched components are covered by our BSAU145e certification shown on our website. So we guarantee your number plates will be road legal, subject to correct use. And this size makes 2-line number plates for motorcycles.

  • Size: 9×7 inch or 229x178mm
  • Contents: 9x7in Clear Film and LG EnviroPlate.
  • Bundle Size: 20 or 50 Plates
  • Colour: Yellow Only
  • For: Motorcycle Number Plates
  • Discount: 10% Off Trade Rate*

As you know, you have to print and join our components together to make a number plate. Therefore ensure your system can reverse print onto clear film before buying this matched bundle.

Note* Reduction applies to standard trade accounts only. Customers with discount rates get their pre-agreed discount.

Bundle Components

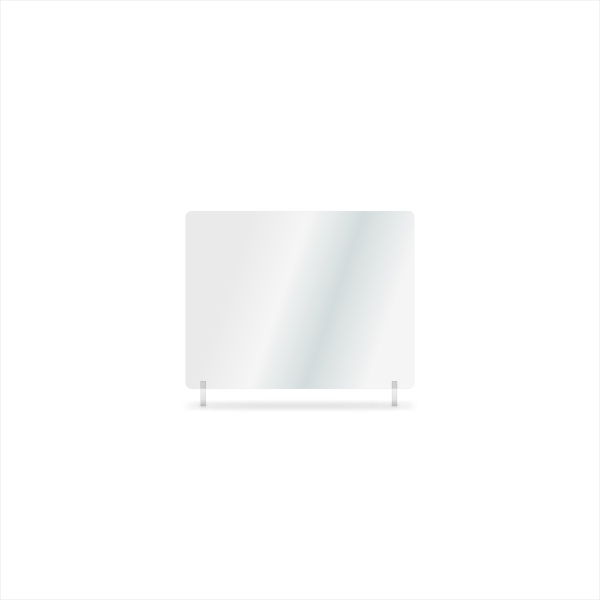

9x7in Clear Film

nrd003w - White 9x7in Dry Reflective Sheet
Tennants Clear Film is designed for printed number plate production. For Film Number Plates, you simply print on and then laminate it on top of an ABS Plate. Each film sheet is coated with a substrate for better toner bonding.

9x7in LG EnviroPlate – Yellow

lg003y - Yellow 9x7in ABS Plates
Our LG EnviroPlate is certified to make compliant number plates. But only when laminated to our Clear Film sheets. Every plate has a UV stable reflective face which resists discolouring. And comes with a wet adhesive coating for easy assembly.

Film Number Plates

Clear Film & LG EnviroPlate - Construction

Make a film number plate by laminating your reverse printed Clear Film above a reflective LG EnviroPlate.

For more information on standards and regulations, check out our main site and the number plates pages or knowledge base.

Combining Matched Components

Roller jigs are used for plate assembly

Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.

Assemble with a Jig & Roller

Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.

Film Plates
  • Start by applying any Badge Panels to your printed film, for colour correction.
  • Next use the pins and place a LG EnviroPlate, reflective face up on to the jig.
  • Fold back a few centimetres of the adhesive cover at the end of the plate.
  • Now, line up your Clear Film sheet on top, with the printed side facing downwards.
  • Carefully join the components together at the Exposed Adhesive edge.
  • Ensure both the edge and sides are correctly lined up before joining together.
  • Finally slide the two parts towards the Rollers at the end of the jig.
  • Slowly Wind the arm so the components are fed through, keeping hold of the folded adhesive cover.
  • This will remove the adhesive cover and Bond the two parts together.

Additional information

Dimensions229 × 178 mm
Media Type

Film Plates, Matched Bundles

Product Brand

Tennants UK
