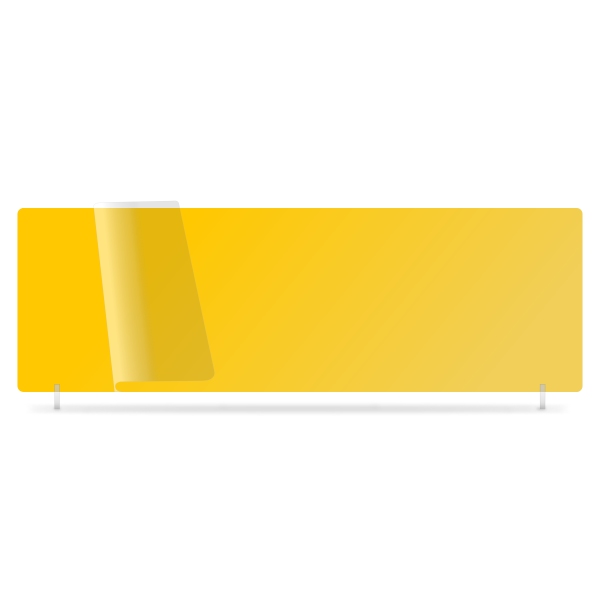

10 565x184mm Wet Reflective
This 565x184mm Wet Reflective is used to make 3-Part Number Plates & comes in packs of 10 sheets.
Colour: Select White or Yellow Reflective below.
- Additional information
- Size: 565x184mm or 22×7¼ inch
- Quantity: 10 Wet Reflective Sheets
- Colour Options: White & Yellow
- Wet Faced: Adhesive Coated
- Printable: No
- 3-Part Plates: Match with 565x184mm Clear Acrylic and 565x184mm Clear Film.
Our 565x184mm Wet Reflective sheets are UV stable and resistant to fading. No matter which colour you use, it adds reflectivity to the back of your number plate. Wet-faced, their adhesive coating is protected by a quick release cover. And this is another size commonly used for oversized plates on luxury cars.
3-Part Number Plates
You make 3-Part number plates by printing onto clear film, then laminating it between an acrylic face and wet reflective.
For more information on standards and regulations, check out our main site and the number plates pages or knowledge base.
Make a number plate using our 3 step process.
1: Design 2: Print 3: Assemble
Build it in our software, then print it out and simply assemble the matched components together.
Assemble with a Jig & Roller
Whenever you make a printed number plate, we recommend using a jig and roller for a professional finish.
- Place your printed Clear Film face up on the jig.
- Fold back a few centimetres of the adhesive cover on a Acrylic Face.
- Position the Acrylic above the Film, Adhesive Side Down and carefully join the two pieces together
- Leading with the joined edge, keep hold of the Fold and slowly wind the arm & Feed the parts through the roller.
- This will remove the adhesive cover and bond the two parts together.
- Next, put a Wet Reflective adhesive face up on the jig, folding back part of its cover.
- Position the parts joined earlier on top with the Film Facing Down, join them together at the exposed edge
- Once again Feed them through the rollers, keeping hold of the folded adhesive cover.
- This will remove the final adhesive cover and Bond all the parts together.
|Dimensions||565 × 184 × 0.4 mm|
Wet Reflective, 3-Part Plates
